Reel Specifications:
Max Reel Weight: 30 Tons
Max Reel Diameter: 216" / 5.5 m
Max Belt Width: 118"/3m
Winder Performance
Line Pull at Hub: 7.8 Tons @ 14" ⌀
Line Pull at Max Diameter: 0.5 Tons @ 216"⌀
Max Reeling Speed: 5.8 RPM
Drive Torque at Reel: 10242 lb-ft / 13.9 kNm

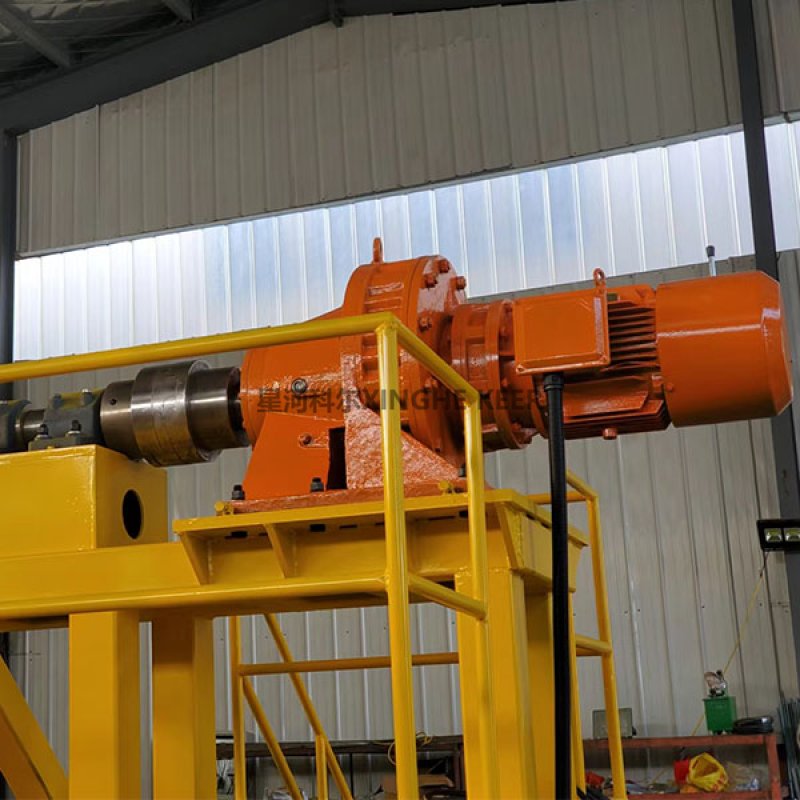

Drive Specifications:
Electrical Motor Power: 12.3 HP / 9.2 kW
Motor Voltage: 380 VAC
Equipment Dimensions:
Length: 236"/6m
Width: 200" /5m
Height: 157"/4m
Weight: 3.8Tons

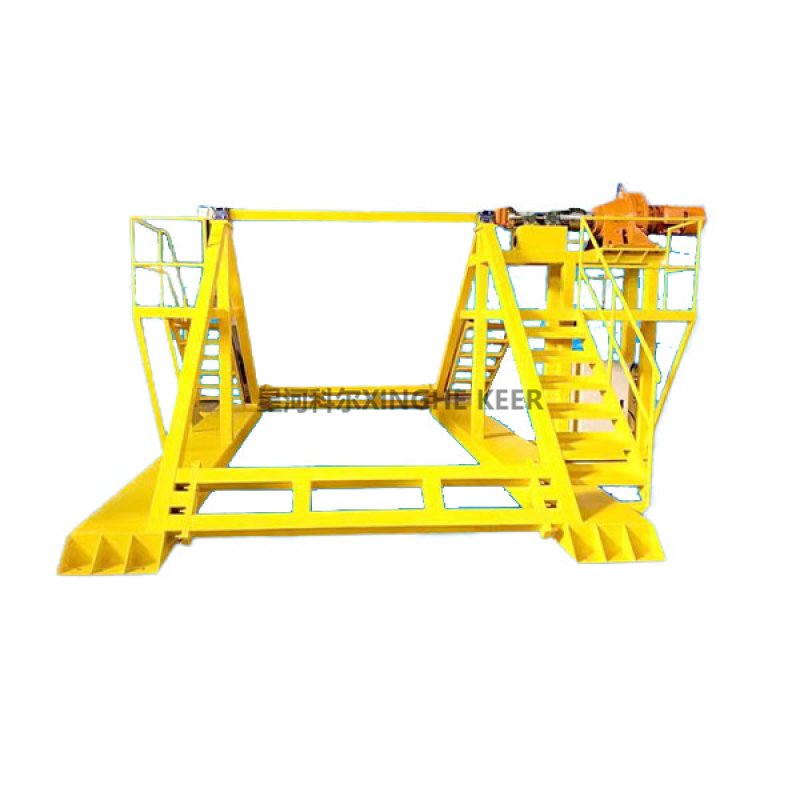

Belt Winders are designed and manufactured according to the specifications required
