Rubber Conveyor Belt Vulcanizers / Customizable
TECHNICAL DATA | |
Function | Conveyor Belt Hot Vulcanization Joint |
Application | Rubber Belt Splicing |
Material | Aluminium |
Pressure | As our experience, normal setting is 0.8Mpa; 1.2Mpa is for EP belts; 1.4Mpa is for steel cord belts. (Max. 1.8Mpa, Adjustable) |
Heating Way | Flexible Silicone Electric Heating Max. 200℃, Adjustable |
Vulcanizing Temperature | 145℃ |
Cooling Way | Built-in Water Circulation Cooling |
Cooling Time from 145℃ to 75℃ | ≤10minutes |
Belt Width | 650~3000mm |
Platen Length | 780~3250mm |
Bias Angle | 16°, 18°, 20°, 22°, 90° etc. |
Voltage
| 380V, 220V, 380V, 400V, 415V, 440V, 480V, 525V, 660V, etc. 50HZ/60HZ |
Total Weight | 208~3200KG |
Price | Negotiable |
PRODUCT DETAILS | |
Place of Origin | Qingdao City, China |
Brand Name | XINGHE KEER |
Certification | CE, ISO |

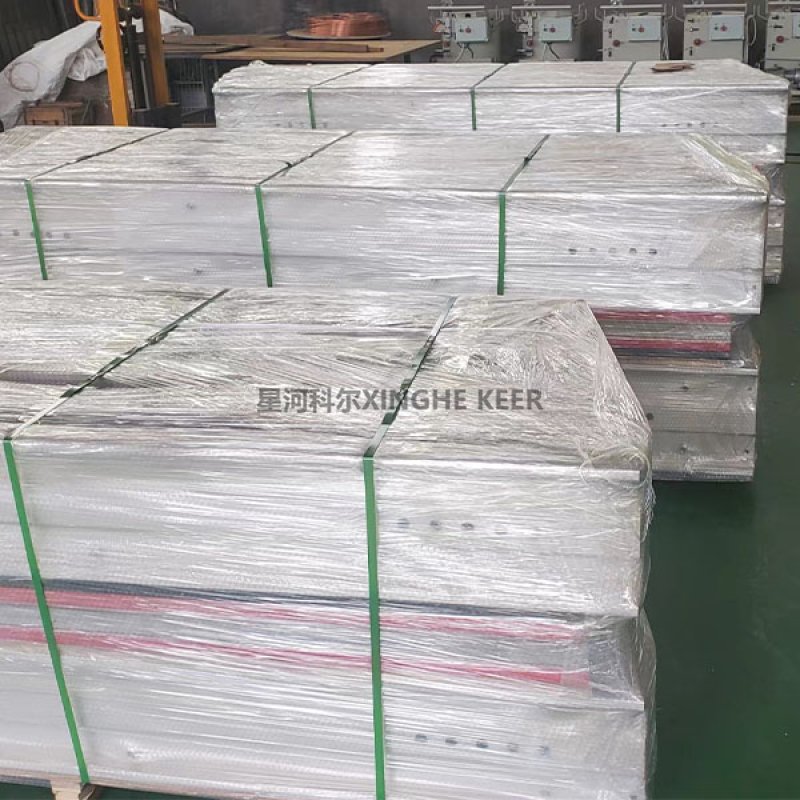

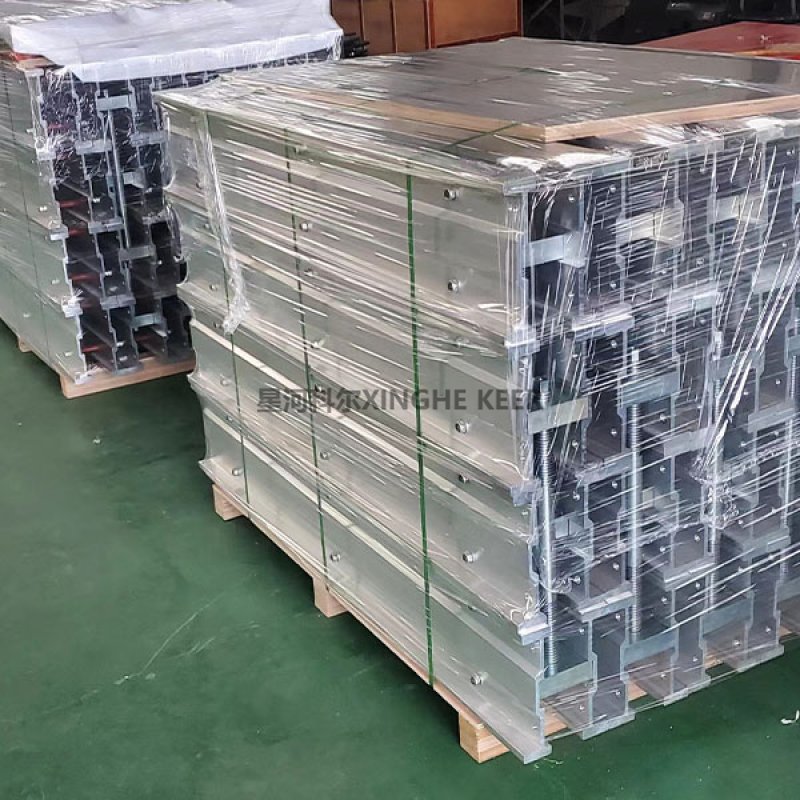

Packaging and Transport Way | Plywood Box by Sea |
Minimum Order Quantity | 1 Set |
Supply Capacity | 50 Sets Per Month |
Payment Terms | T/T |
Delivery Time | 3 ~4 Weeks |
Warranty | 12 Months |
Notes: —Before placing an order, please confirm Conveyor Belt Max. Width; Splice Length; Bias Angle; Vulcanization Pressure; Local Working Voltage. —We test running the vulcanizers before delivery to find out any potential fault. —We can record videos in English to provide sales and after-sales services. —We offer OEM service. Your logo can be printed on conveyor belt vulcanizers. | |
A=Length of Platen Along the Belt
B=Width of Platen Across the Belt on the Bias
C=Right Angle Dimension across the Belt, Plus Edge Overlap.
D=Bias Angle (0°/18°/20°/22° etc.)
E=Max Splice Length
